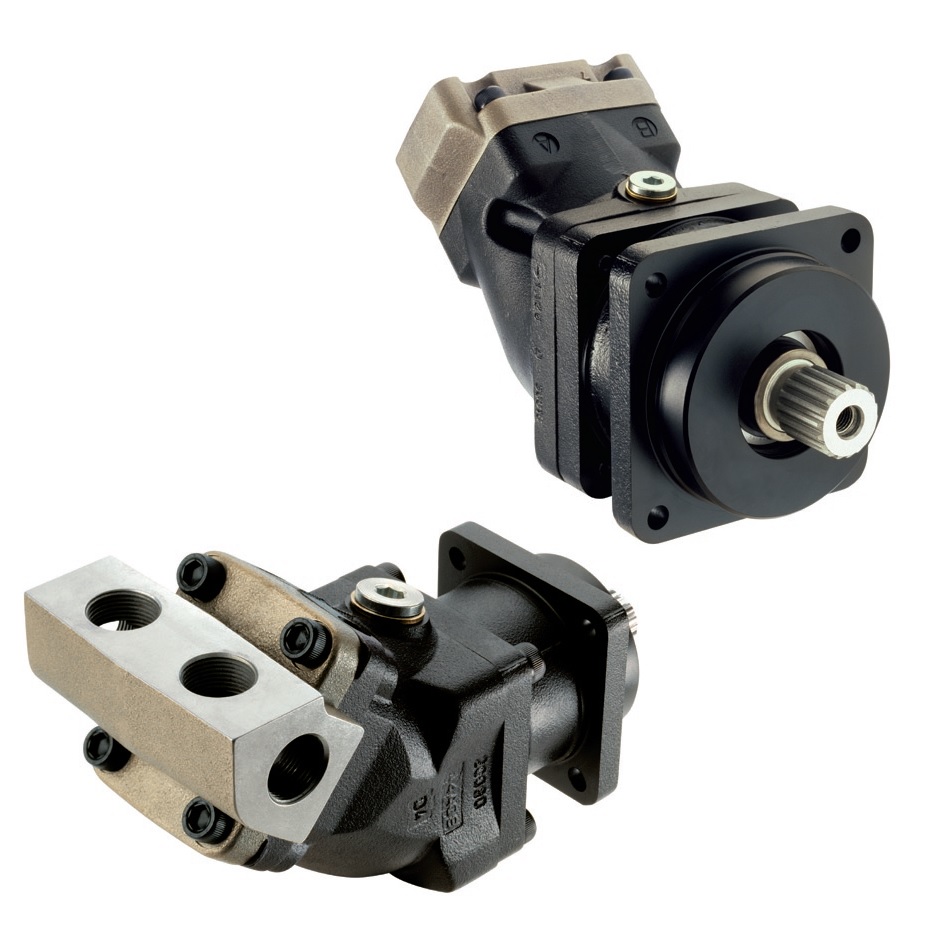

Sunfab Piston Motor

Products  >>  Hydraulics  >>  Piston Hydraulic Motors   >>  Sunfab

  Product Code: Sunfab Bent Axis Piston Motor
  Specifications :

SCM ISO covers the displacement range 12 – 130 cm3/revolution with ISO-standard on flange and shaft. Maximum working pressure 40 MPa.
  • Robust bearing set
    • Interacting double tapered roller bearings for high radial loads and long service life.
  • Optimized connection cover
    • Precision-machined connection cover for maximum performance and durability.
  • Spherical pistons
    • Up to 7 pistons for pulsation-free flow, high starting operational reliability and high rotational speed.
  • Bent-axis design
    • Gives a compact design with few moving parts, low bearing loads, high operating reliability and high total efficiency.

SCM M2 covers the displacement range 047 - 90 cm3/revolution.

  • Cartridge
    • M2 Cartridge is a series of robust axial piston motors with cartridge flange, especially suitable for winch-, slewing-, wheel- and track drives.
  • Robust bearing package
    • The M2's well dimensioned, double tapered roller bearings permit high shaft loads and provide superb speed performance.
  • Bent-axis design
    • The M2 has an angled shaft and spherical pistons. The design gives a compact motor with few moving parts, high starting efficiency and high operational reliability.

SCM SAE covers the displacement range 12 – 130 cm3/revolution with SAE-standard on flange and shaft. Maximum working pressure up to 40 MPa.

  • SCM SAE is available with 2-bolt flange in sizes 12 - 34 cc and with 4-bolt flange in 12 - 130 cc.
  • Bent-axis design
    • SCM SAE has an angled shaft and spherical pistons. The design gives a compact motor with few moving parts and high starting operational reliability.


Click on image to enlarge


Technical Data

SCM 012-130 ISO Catalogue

SCM 047-090 M2

SCM 012-130 SAE

SCM 012-034 SAE B2 Catalogue
