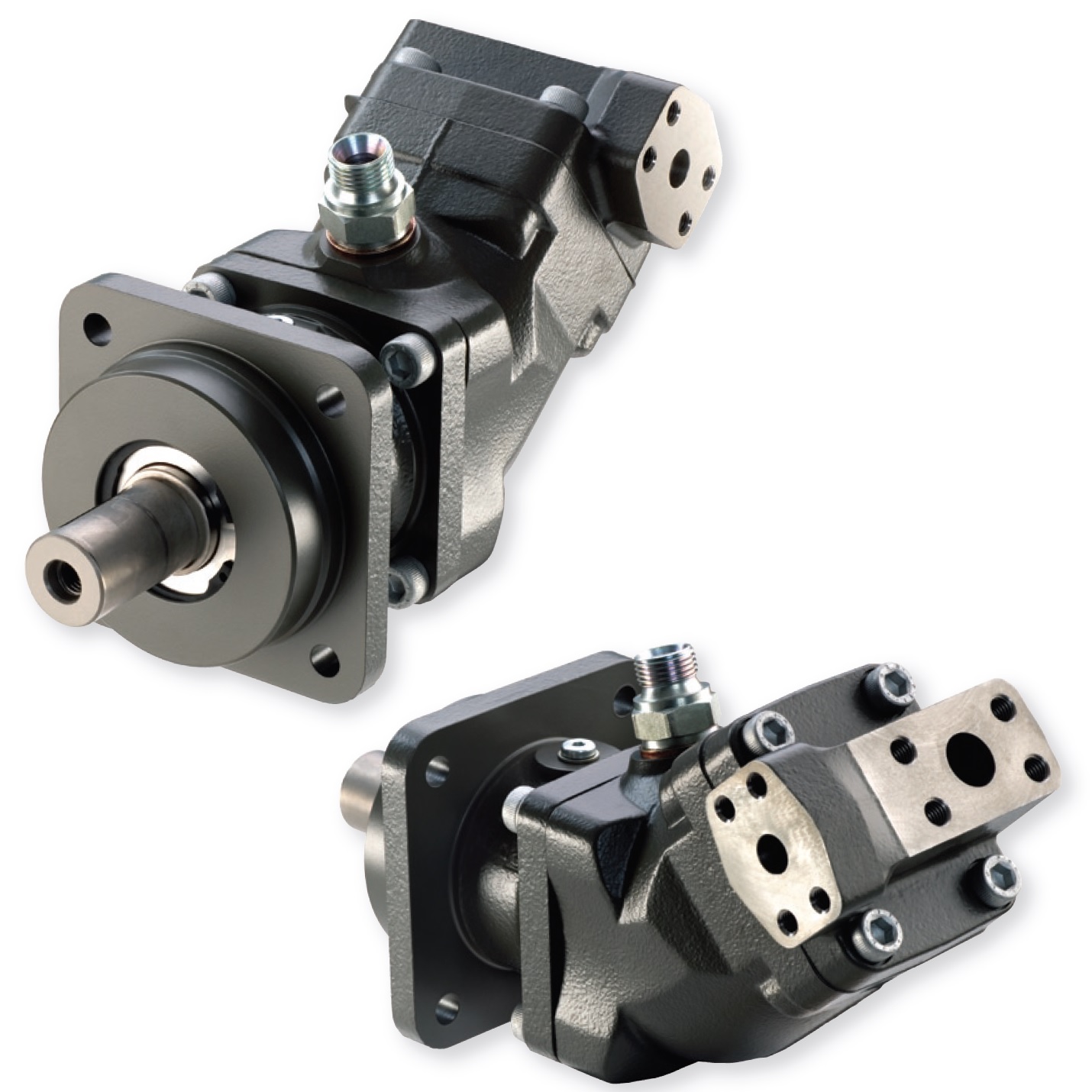

Sunfab Piston Pump

Products  >>  Hydraulics  >>  Piston Hydraulic Pumps  >>  Sunfab

  Product Code: Sunfab Bent Axis Piston Pump
  Specifications :

SCP ISO with fixed displacement 12 - 130 cm³/revolution. Suited for industrial applications. Maximum working pressure up to 40 MPa. The pump is drained externally.
  • SCP are speed optimized and therefore supplied in either left (L) or right (R) handed designs.
  • Robust bearing package
    • SCP's well dimensioned, double tapered roller bearings permit high shaft loads and lead to excellent speed characteristics.
  • Quality secured
    • The pump has a long life due to high demands on material selection, such as bearings, seals, etc.

SC SAE 5012 - 5108 with fixed displacement 12 - 108 cm³/revolution. Maximum working pressure up to 40 MPa.

  • High performance
    • The compact bent axis has been developed to supply high rotational speed, high pressure, high efficiency, low noise levels and very small installation dimensions.
  • With By-Pass valve
    • SC is either mounted directly on the power take off or on a frame bracket via an intermediate shaft. The SC pump should be supplemented with the Sunfab By-Pass valve in installations where the hydraulics are used while the vehicle is on the move.
  • Quality secured
    • The pump has a long life due to high demands on material selection, such as bearings, seals, etc.

DIN standard SC fixed displacement 12 - 108 cm³/revolution.

  • High performance
    • The compact bent axis has been developed to supply high rotational speed, high pressure, high efficiency, low noise levels and very small installation dimensions.
  • With By-Pass valve
    • SC is either mounted directly on the power take off or on a frame bracket via an intermediate shaft. The SC pump should be supplemented with the Sunfab By-Pass valve in installations where the hydraulics are used while the vehicle is on the move.
  • Quality secured
    • The pump has a long life due to high demands on material selection, such as bearings, seals, etc.


Click on image to enlarge


Technical Data

SCP 012-130 ISO Catalogue

SC 5012-5108 SAE Catalogue

SC 75-75 DIN Catalogue

SC 012-108 DIN Catalogue

By Pass Valve Catalogue
