4AM-ARV-119

Products >> Pneumatics >> 4AM Series Vane Air Motors >> GAST

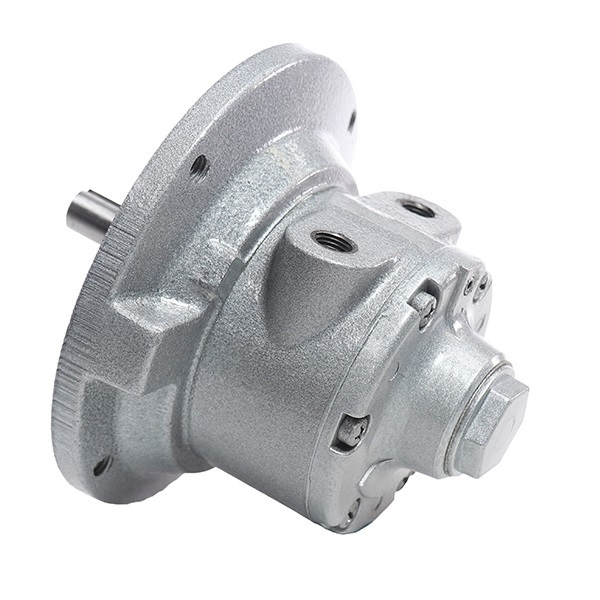

Product Code: 4AM-ARV-119

	Specifications :

The compact and portable 4AM series offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application.

The air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor.

In addition, these Gast air motors are cool running and have no electrical spark, which makes them ideal for use in hazardous locations.

Specifications

Max. Air Consumption: 78cfm (132.52m³h)
Max. Power: 1.27kW (1.7HP)
Max. Pressure: 7bar (101.53psi)
Max. Sound Level: 87dB(A)
Max. Speed: 3000rpm
Max. Torque: 6.33Nm (56in-lb)
Torque @ Max. Speed: 4.07Nm (36in-lb)
Starting Torque: 3.16Nm (28in-lb) @ 80psi
Mounting: Flange (IEC) D71B5
Output Shaft: 14mm Straight Keyed
Inlet/Outlet Ports: 3/8" BSP

Click on image to enlarge

Technical Data

		4AM-ARV-119 Spec Sheet
