8AM-FRV-30A

Products >> Pneumatics >> 8AM Series Vane Air Motors >> GAST

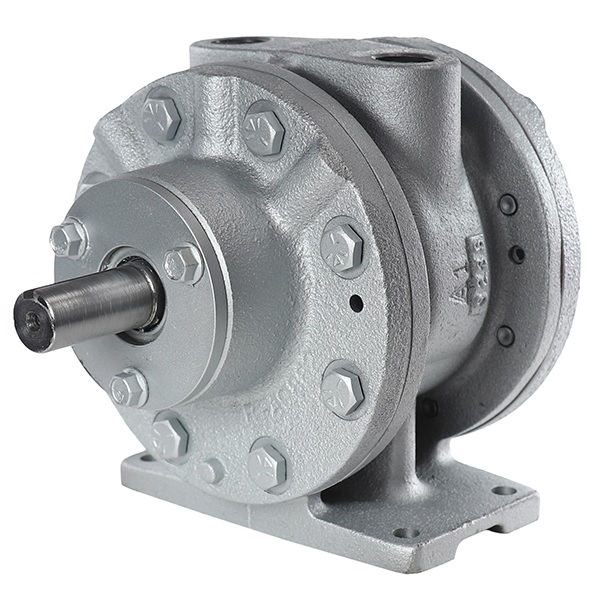

Product Code: 8AM-FRV-30A

	Specifications :

The 8AM family offers variable operating speed and power output that can be adjusted to meet the precise needs of your application.
Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor.
In addition, being a non electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Specification
Max. Air Consumption: 175cfm(297.33m³h)
Max. Power: 3.73kW (5HP)
Max. Pressure: 7bar (101.53psi)
Max. Sound Level: 105dB(A)
Max. Speed: 2500rpm
Max. Torque: 20.91Nm (185in-lb)
Torque @ Max. Speed: 14.92Nm (132in-lb)
Starting Torque: 13.22Nm (117in-lb) @ 80psi
Mounting: Foot
Output Shaft: 19.05mm (3/4in) Straight Keyed
Inlet/Outlet Ports: 1/2" NPT
