Caterpillar Complete Pump Parts List

Products  >>  Hydraulics  >>  Hydraulic Spare Parts   >>  Caterpillar

  Product Code: Caterpillar Pump Parts List
  Specifications :


SAMT Hydraulics can supply all replacement Caterpillar hydraulic piston pump parts;  our SAMT branded manufactured parts are completely interchangeable with original Caterpillar OEM products.

Our Parts are manufactured with best materials using advanced manufacturing facilities & skills, strict heat treatments, 100% quality certified and covered by 12 months warranty.

SAMT Hydraulics Can supplly all Pump Parts as per list below:

CAT 215 EXCAVATOR main piston pump

DESCRIPTION

CURRENT OEM PARTS NUMBERS

REPLACES PARTS NUMBERS

USED IN PUMP NUMBERS

Piston

8J2037



CAT 8J6853 4T7025 IU4748 9T1062

Cylinder block

9J3522

9J5758

Valve plate

IU3444



Retainer plate

4T7022

8J6328 9J7858

Thrust plate

IU0406

8J6346 9J2857

Drive Shaft

3G2331




CAT 225 EXCAVATOR main piston pump

DESCRIPTION

CURRENT OEM PARTS NUMBERS

REPLACES PARTS NUMBERS

USED IN PUMP NUMBERS

Piston

IU2738

9J4936 8J1913

CAT 8J8723 9J9362 4T7426 3G3287 8J2344 8J4379

Cylinder block

9J2417

9J8266 8J0538

Valve plate

3G2859

9J2484 8J2024

Retainer plate

4T7024

8J0489 8J9966

Thrust plate

3G9671

8J0488 9J0560

Drive Shaft

8J8654

8J0500



CAT.225B LC&229 EXCAVATOR



DESCRIPTION

CURRENT OEM PARTS NUMBERS

REPLACES PARTS NUMBERS

USED IN PUMP NUMBERS

Cylinder block

9T3370



9T-3712 9T-3714

Drive Shaft

9T3384 9T3385



Retainer plate

9T3366



Valve plate

9T3421



Piston ring

9T3745



Center pin

9T3369



Piston(7)

9T3371



Disc spring

9T3368



Socket bolt

9T2966

105-1517



CAT 235 EXCAVATOR main piston pump

DESCRIPTION

CURRENT OEM PARTS NUMBERS

REPLACES PARTS NUMBERS

USED IN PUMP NUMBERS

Piston

4T3122

8J6897 4T3154

CAT 8J1905 IU4722 4T2507 4T7026 7J8240

Cylinder block

9J8667

3G2736

Valve plate

6E1332

9J3526 8J6900

Retainer plate

4T7023

6C0415 3G3150

Thrust plate

3G4779



Drive Shaft

8J6802

9J2484



CAT 245 EXCAVATOR main piston pump

DESCRIPTION

CURRENT OEM PARTS NUMBERS

REPLACES PARTS NUMBERS

USED IN PUMP NUMBERS

Piston

4T3122

8J6897 4T3154

CAT 4T7027 4T2506 3G7230 8J4380 1U3840

Cylinder block

9J8667

3G2736 8J7332

Valve plate

6E1332

9J3526 8J6900

Retainer plate

4T7023

8J0179 3G3150

Thrust plate

3G4779

8J0171

Drive Shaft

8J6802

9J2484



CAT.320,320L,&320N EXCAVATOR 087-4824 SWING MOTOR GP PISTON Used in Rotating Gr-pump#087-4824

DESCRIPTION

CURRENT OEM PARTS NUMBERS

REPLACES PARTS NUMBERS

USED IN PUMP NUMBERS

Piston set assy

5I-8632



087-4824

Cylinder block

5I-8631



Valve plate

5I-8636



Retainer plate

5I-8637



Ball guide

5I-8634



Thrust plate

5I-8628



Drive Shaft

5I-8640




PUMP#114-0602 ON 320,320L,320N,EXCAVATOR. PUMP#114-0603 ON 322BL,322BLN,EXCAVATOR. PUMP#114-0604 ON 325B,325BL,EXCAVATOR. E300B,PUMP ASSY.#085-4633.

DESCRIPTION

CURRENT OEM PARTS NUMBERS

REPLACES PARTS NUMBERS

USED IN PUMP NUMBERS

Valve Plate L.H. Lower Pump

099-5858

087-4781 087-4828

087-4718 087-4780 087-4781 087-4782 087-4828

Valve Plate R.H. Upper Pump

099-5865

087-4780 087-4828

Cylinder block

087-4783

087-4782

Retainer plate

105-1516

087-4782

Socket bolt

105-1517

087-4782

Center pin

9T-3369

087-4782

Piston

099-5713

087-4782

Ring

9T3745

087-4782

Upper-shaft

099-5864

087-4780

Lower-shaft

099-5852

087-4781

Drive Shaft

099-5818

087-4718

Disc SPRING

9T-3368

087-4782



CAT.320C EXCAVATOR PARTS INDENTIFICATION

173-3381 PUMP GP-PISTON

Description

Current OEM Parts Numbers

Replaces Parts Numbers

Used in Pump Numbers

Piston set assy with Retainer plate

191-5709



Cylinder block with Valve plate

173-3498



Cylinder block with Valve plate

173-3496



Drive shaft

173-3391



Block spring

173-3427



Ball guide

118-4057




CAT 330 B & L



Excavator pump, 114-0605, 5070-017

Description

Current OEM Parts Numbers

Replaces Parts Numbers

Used in Pump Numbers

Drive shaft Lower pump

5I4475



1425519 Rotaring Group

Drive shaft Upper pump

5I4485



Valve plate Lower pump

5I4476



Valve plate Upper pump

5I4486



Cylinder block

5I4311



Socket bolt

1134420



Retainer plate

5I8404



Disc spring

5I8403



Piston

5I8401



Piston ring

5I8402



Center Pin

5I4403



Gear

1298001




CAT 12G - 120G- 130G - 140G- 160G GRADER

main piston pump



Description

Current OEM Parts Numbers

Replaces Parts Numbers

Used in Pump Numbers

Piston

8J2022

8J6897 4T3154

CAT 8J6155 8J6730 8J0498 8J6731

Cylinder block

9J8660

3G2736 8J7332

Retainer plate

4T7022

9J3526 8J6900

Valve plate

9J5758

8J0179 3G3150

Thrust plate

IU0406

8J0171

Drive shaft

8J6296

9J2484



CAT 12G - 120G- 130G - 140G- 160G GRADER pump

Description

Current OEM Parts Numbers

Replaces Parts Numbers

Used in Pump Numbers

Piston

9T7765



6E-1279 9T-1417

Cylinder block

9T7774



Retainer plate

9T7767



Valve plate

9T7775



Thrust plate

9T7768



Drive shaft

9T7783 6E1861




CAT 12G - 120G- 130G - 140G GRADER pump

Description

Current OEM Parts Numbers

Replaces Parts Numbers

Used in Pump Numbers

Piston

8J2037



CAT. 8J6730 8J6731 8J6155

Cylinder block

9J3522

9J5758

Retainer plate

4T7022

8J6328 9J7858

Valve plate

IU3444



Thrust plate

IU0406

8J6346 9J2857

Drive shaft (Spined type)

3G2331




CAT 14G- 16G GRADER main piston pump

Description

Current OEM Parts Numbers

Replaces Parts Numbers

Used in Pump Numbers

Piston

IU2738

9J4936 9J1613

CAT. 4T2767 4T2768 8J6855 9T3547 8J6168

Cylinder block

9J2417

9J8266 8J0538

Valve plate

3G2859

9J2484

Retainer plate

4T7024

8J0489 8J-9966

Thrust plate

3G9671

8J0488 8J0560

Drive shaft

8J5592




CAT 14G- 16G GRADER main piston pump

CAT 6YZ D8R TRACK-TYPE TRACTOR 9T8346 PUMP

Description

Current OEM Parts Numbers

Replaces Parts Numbers

Used in Pump Numbers

Piston

9T8452

9J4936 9J1613

9T5611 9T5456 9T8453 6E4216

Cylinder block

9T8448

9J8266 8J0538

Valve plate R.H

9T8455

9J2484

Valve plate L.H

6E4234

8J0489 8J-9966

Retainer plate

9T8450

8J0488 8J0560

Thrust plate

9T8449



Drive shaft

9T8629





CAT 120-140G GRADER piston pump



Description

Current OEM Parts numbers

Replace Parts Numbers

Used in Pump Numbers

Piston

9T7761



Cylinder block

9T7757



6E1278

Vavle plate

9T1633



4T0501

Retainer plate

9T7759



9T1416

Thrust plate

9T7758



Drive shaft

9T1634 6E1859





CATERPILLAR LOADER



CAT 992C LOADER Fixed piston pump



Description

Current OEM Parts numbers

Replace Parts Numbers

Used in Pump Numbers

Piston

4T3122

8J6897 4T3154

CAT

Cylinder block

9J8667

3G2736 8J7332

3G2848

Vavle plate

6E1875

8J9600 3G1717

IU3840

Retainer plate

4T7023

8J0179 3G3150

IU4722

Thrust plate

3G4779

8J0171

9J8333

Drive shaft

3G1719



9J4834



CAT 992C LOADER Variable piston pump

Description

Current OEM Parts numbers

Replace Parts Numbers

Used in Pump Numbers

Piston

4T3122

8J6897 4T3154

CAT

Cylinder block

9J8667

3G2736 8J7332

4T7027

Vavle plate

6E1332

8J6900 9J3526

4T2506

Retainer plate

4T7023

8J1079 3G3150

3G7230

Thrust plate

3G4779

8J0171

8J4380

Drive shaft

3G4604

9J2484

9T0698



CAT 446 BACKHOE LOADER

Description

Current OEM Parts numbers

Replace Parts Numbers

Used in Pump Numbers

Piston

9T7761



Cylinder block

9T7757



9T2108

Vavle plate

9T1633



ROTAING

Retainer plate

9T7759



GROUP

Thrust plate

9T7758



9T1704

Drive shaft

9T1634 6E1859




CAT BACKOE LOADER mian pump



416-9T4699 Pump.9T3017 Rotating Group



426-9T4833/4T6962 Pump,9T3017 Rotating Group



436-9T4833-9T3017 Rotating Group



438-9T4833-9T3017 Rotating Group



Description

Current OEM Parts numbers

Replace Parts Numbers

Used in Pump Numbers

Piston

9T3018



Cylinder block

9T3026



9T4833

Vavle plate

9T3030



4T6962

Retainer plate

9T3019



9T3017

Thrust plate

9T3020



Drive shaft

9T3039





CATERPILLAR TRACTORS



CAT D6H TRACTOR main piston pump

Description

Current OEM Parts numbers

Replace Parts Numbers

Used in Pump Numbers

Piston

9T7765



Cylinder block

9T7774



6E2388

Vavle plate

9T9460



9T6519

Retainer plate

9T7767



Thrust plate

9T7768




CAT D6H TRACTOR & JOHN DEERE 690D EXCAVATOR

Description

Current OEM Parts numbers

Replace Parts Numbers

Used in Pump Numbers

Piston

9T7731



Cylinder block

9T7729



9T7099

Vavle plate

9T7727



9T3680

Retainer plate

9T7730



9T7764

Thrust plate

9T8104




CAT. D7H & D8N TRACTOR main pump

Description

Current OEM Parts numbers

Replace Parts Numbers

Used in Pump Numbers

Piston

9T4180

8U2106

9T1586

Cylinder block

1410828

9T8637 9T4176

4FG-1&UP

Vavle plate

9T4136

9T2107

9T8647

Retainer plate

6E1450



S/N 9TC3120&UP

Thrust plate

9T9521



8U0691

Drive shaft

1410827 9T4137

9T8634

9TC-1&, amp;UP

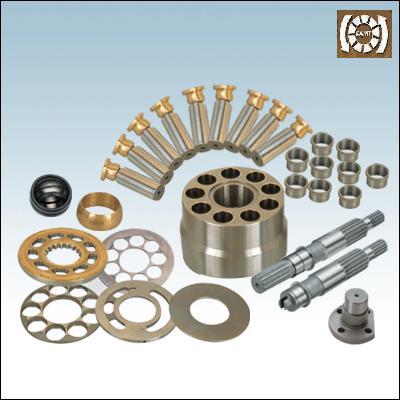

Pump Parts CAT SPK10/10 (E200B)

For all OEM and SAMT branded spare parts, please call our head office on (02) 9607 4100.



Click on image to enlarge
