2AM-ACC-88
Products
>>
Pneumatics
>>

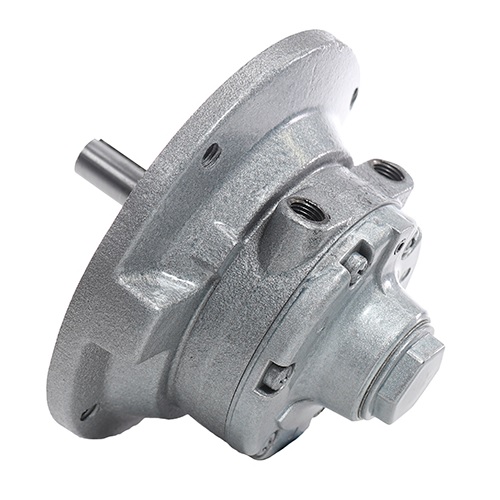

2AM Series Vane Air Motors
>>
GAST
Product Code:
2AM-ACC-88
Specifications :
The compact and portable 2AM series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application.
Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor.
In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.
Specifications
Max. Air Consumption: 30cfm(50.97m
3
h)
Max. Power: 0.71kW (0.95HP)
Max. Pressure: 7bar (101.53psi)
Max. Sound Level: 76dB(A)
Max. Speed: 3000rpm
Max. Torque: 3.16Nm (28in-lb)
Torque @ Max. Speed: 2.2Nm (19.5in-lb)
Starting Torque: 1.98Nm (17.5in-lb) @ 80psi
Mounting: Flange(IEC)
Output Shaft: 13.97mm Straight Keyed
Inlet/Outlet Ports: 1/4" BSP
Rotation: Counter Clockwise
Click on image to enlarge
